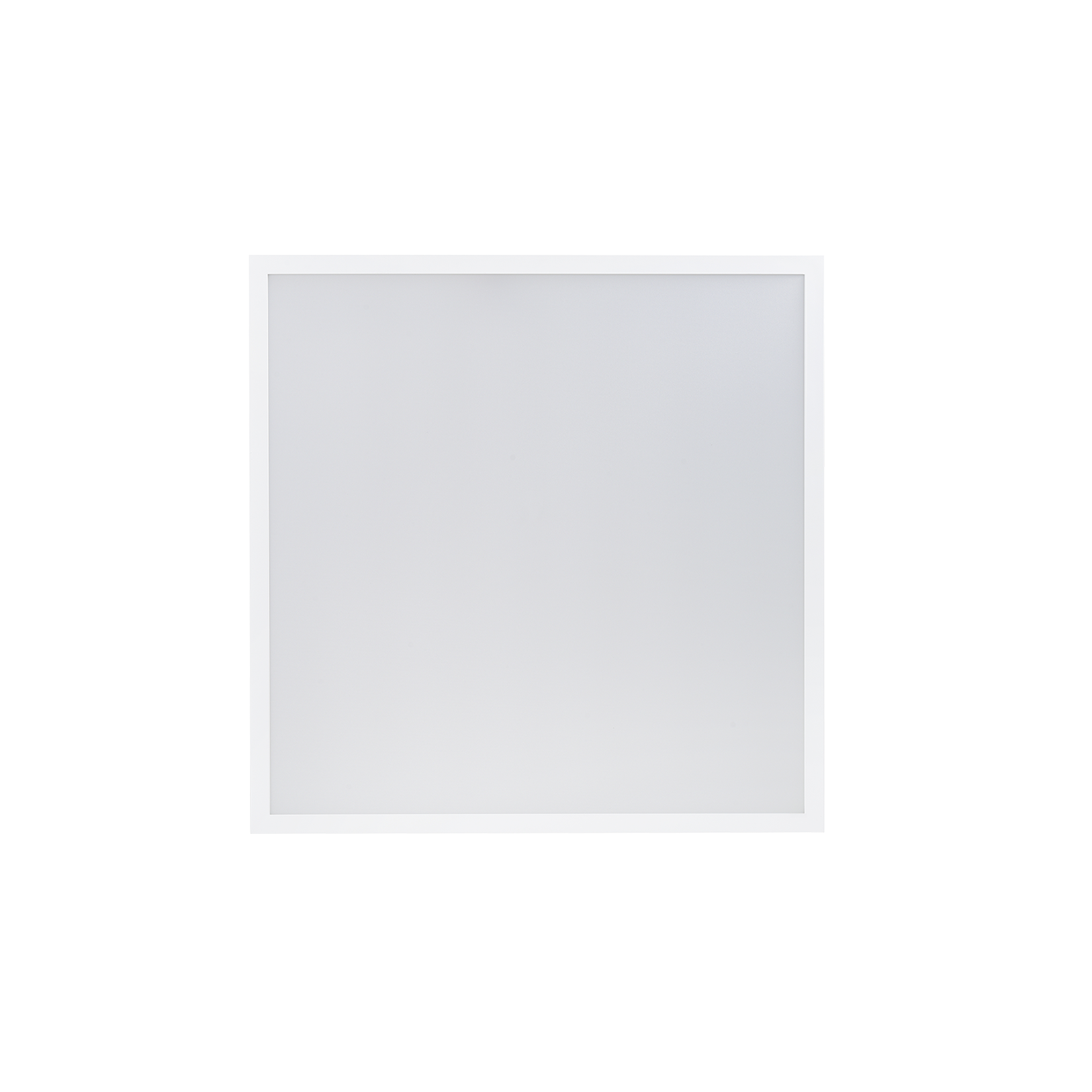

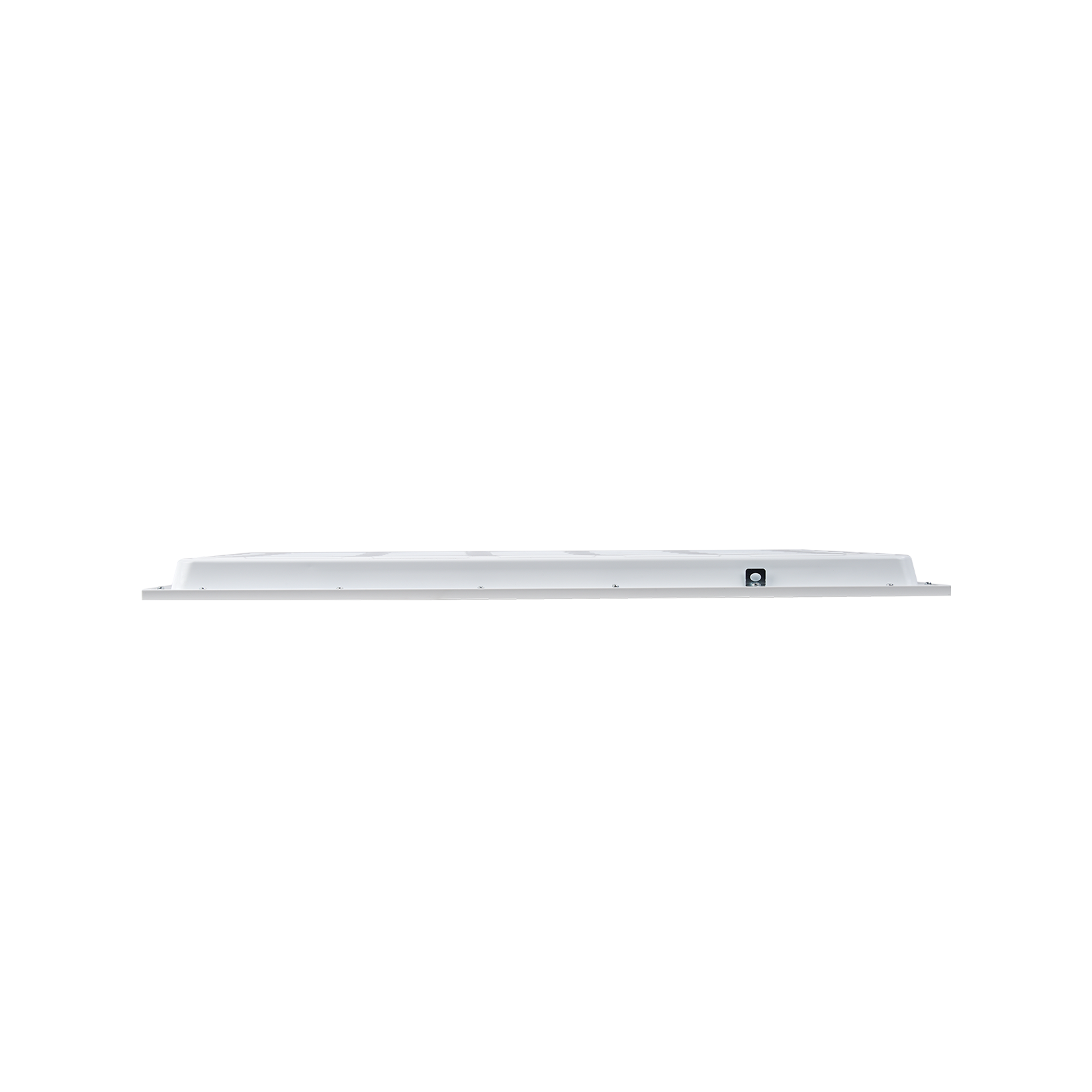

Panel > BERTO Backlit P

  • IP54 rated and dual CCT 3000/4000K
  • Equipped with flicker free (≤3%) driver
  • Four-step lumen output switching via driver
  • Efficacy up to 140lm/W
  • Long lifetime of 70.000h L80B10 at Ta 25°C
  • 5 years warranty
  • DALI2.0 dimmable driver available
General
Rated power24/28/32/36W
CCT3000K
4000K
Useful lumen3000/3600/4100/4600lm
3300/3900/4500/5000lm
Light efficacy125/129/128/128lm/W
138/139/141/139lm/W
Beam angle90°
Electrical data
Nominal voltage220-240V
Frequency50/60Hz
Rated input current115/135/155/174mA
Power Factor>0.9
THD<20%
Inrush current ipeak30.0A
Inrush current time170µs
Max. number of luminaires per miniature circuit breaker B1012
Max. number of luminaires per miniature circuit breaker B1620
Max. number of luminaires per miniature circuit breaker C1020
Max. number of luminaires per miniature circuit breaker C1633
Surge protection1000V
Protection classClass II
Functions
DimmabilityNo
SensorNo
Master-SlaveNo
EmergencyNo
Photometric data
CRIRA80
UGRUGR19
SDCM3
Flicker percentage≤3% @100Hz
Photobiological safety groupRG0
Mounting & Application
Mounting methodSurface mounted / Suspended / Recessed
Loop-throughYes
IP ratingIP54
IK ratingIK03
Glow wire test650°C
Lifetime L70/B50100000h
Lifetime L80/B1070000h
Lifetime L90/B1050000h
Switching cycles100000
Operating temperature-20 - 40°C
Application temperature25°C
Warranty5 years
Materials & Colour
Housing materialAluminium
Other materialPMMA + PS
Finishing colourWhite
Logistical data
Product length595mm
Product width595mm
Product height33mm
Product net weight1.900kg

Accessories

Ceotis

Driver DALI2.0 push and dim 37W 500-950mA

Megaman

Panel SQ595 Surface mounted frame

Ceotis

Panel SQ595 Surface mounted frame

Megaman

Panel SQ595 Surface mounted kit

Ceotis

Panel SQ595 Recessed frame

Megaman

Panel BL Safety cable kit

Megaman

Panel BL Suspension kit type Y
