- Three CCT options in one product: 2700/3000/4000K
- Triac dimming with smooth performance
- Slim design suitable for limited ceiling space
- Loop-through function to further enhance ease of installation
- Water resistant IP65 rated for locations such as bathroom and outdoor
- Tiltable version available with tilt angle up to 15°
| General | |
|---|---|
| Rated power | 7.0W |
| CCT | 2700K 3000K 4000K |
| Useful lumen | 470lm 490lm 520lm |
| Beam angle | 36° |
| Electrical data | |
|---|---|
| Nominal voltage | 220-240V |
| Frequency | 50Hz |
| Rated input current | 40mA |
| Power Factor | >0.9 |
| THD | <25% |
| Inrush current ipeak | 6.0A |
| Inrush current time | 100µs |
| Max. number of luminaires per miniature circuit breaker B10 | 77 |
| Max. number of luminaires per miniature circuit breaker B16 | 128 |
| Max. number of luminaires per miniature circuit breaker C10 | 123 |
| Max. number of luminaires per miniature circuit breaker C16 | 209 |
| Surge protection | 500V |
| Protection class | Class II |
| Functions | |
|---|---|
| Dimmability | Triac dim |
| Dimming range | 10-100% |
| Sensor | No |
| Emergency | No |
| Photometric data | |
|---|---|
| CRI | RA80 |
| UGR | N/A |
| SDCM | 6 |
| Flicker percentage | ≤20% @100Hz |
| Photobiological safety group | RG1 |
| Mounting & Application | |
|---|---|
| Mounting method | Recessed |
| Loop-through | Yes |
| IP rating | IP65 |
| IK rating | IK02 |
| Glow wire test | 750°C |
| Lifetime L70/B50 | 50000h |
| Switching cycles | 100000 |
| Operating temperature | -30 - 40°C |
| Application temperature | 25°C |
| Warranty | 5 years |
| Materials & Colour | |
|---|---|
| Housing material | Metal |
| Cover material | PC |
| Finishing colour | White |
| Logistical data | |
|---|---|

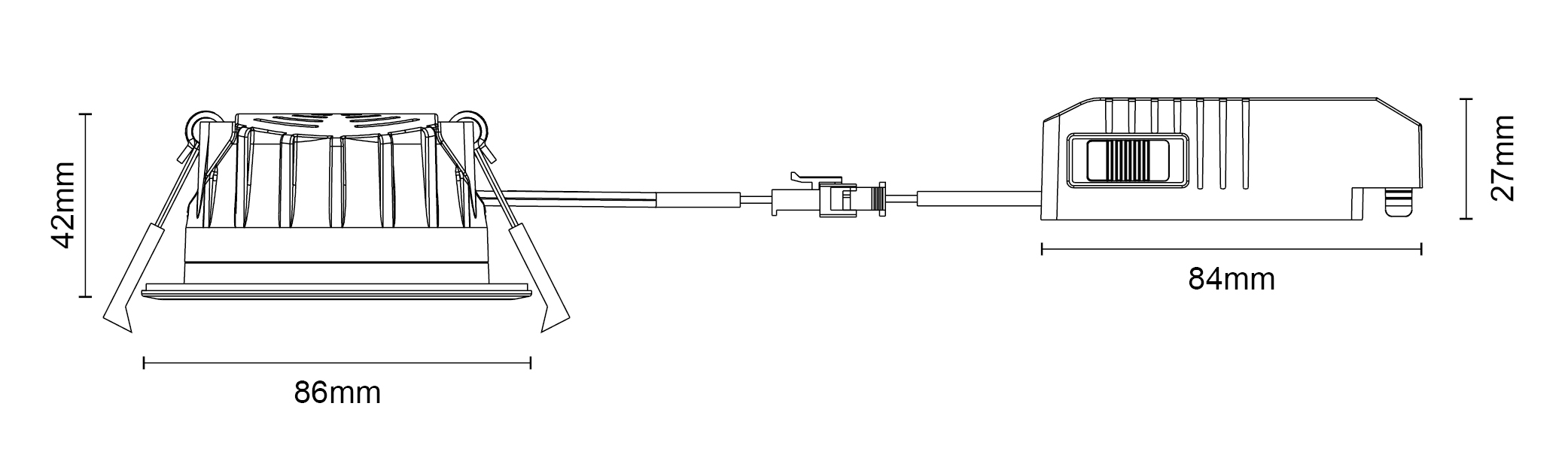

| Product height | 42mm |
| Product diameter | 86mm |
| Cut-out diameter | 68mm |
| Product net weight | 0.208kg |
