- Replacement for traditional waterproof batten
- Durable water and vandal resistant construction with IP65 and IK08 rating
- Easy installation and toolless wiring
- Durable stainless steel clips
- Integrated emergency version
| General | |
|---|---|
| Rated power | 60.0W |
| CCT | 4000K |
| Useful lumen | 6800lm |
| Light efficacy | 113lm/W |
| Beam angle | 110° |
| Electrical data | |
|---|---|
| Nominal voltage | 220-240V |
| Frequency | 50/60Hz |
| Rated input current | 290mA |
| Power Factor | >0.9 |
| THD | 0.15 |
| Inrush current ipeak | 50.0A |
| Inrush current time | 78µs |
| Max. number of luminaires per miniature circuit breaker B10 | 11 |
| Max. number of luminaires per miniature circuit breaker B16 | 18 |
| Max. number of luminaires per miniature circuit breaker C10 | 18 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Surge protection | 1000V |
| Protection class | Class I |
| Functions | |
|---|---|
| Dimmability | No |
| Sensor | No |
| Emergency | Yes |
| Power in emergency mode | 2.5W |
| Lumen output in emergency mode | 250lm |
| Emergency battery duration | 3h |
| Type of emergency operation test | Non-maintained |
| Photometric data | |
|---|---|
| CRI | RA80 |
| UGR | N/A |
| SDCM | 6 |
| Flicker percentage | ≤3% @100Hz |
| Photobiological safety group | RG0 |
| Mounting & Application | |
|---|---|
| Mounting method | Surface mounted / Suspended |
| Loop-through | No |
| IP rating | IP65 |
| IK rating | IK08 |
| Glow wire test | 850°C |
| Lifetime L70/B50 | 40000h |
| Switching cycles | 100000 |
| Operating temperature | -30 - 50°C |
| Application temperature | 25°C |
| Warranty | 3 years |
| Materials & Colour | |
|---|---|
| Housing material | ABS |
| Cover material | Anti-UV PC |
| Finishing colour | Grey |
| Logistical data | |
|---|---|

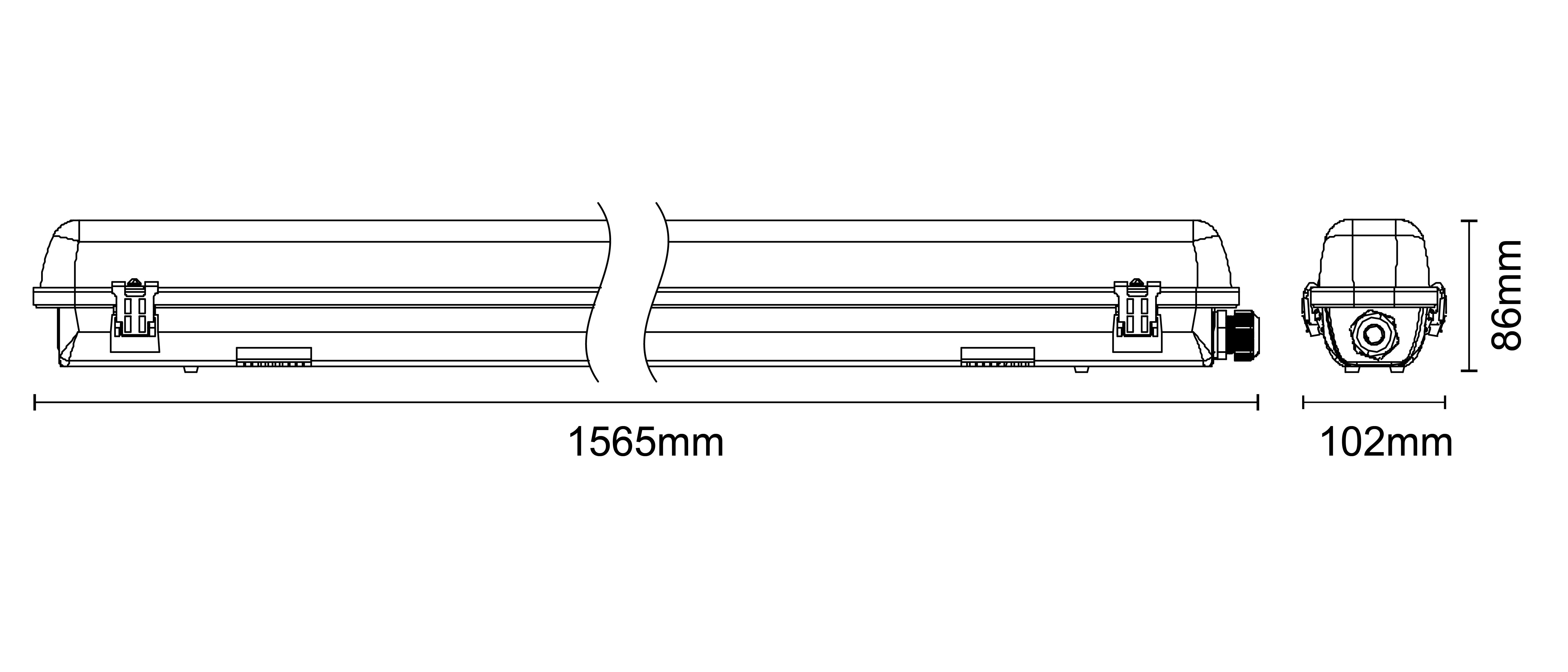

| Product length | 1565mm |
| Product width | 102mm |
| Product height | 86mm |
| Product net weight | 2.100kg |
