Emergency lighting > TEMPUS

  • Non-maintained operation mode
  • Super slim design
  • Overcharge and over-discharge protection, over-temperature protection, short circuit protection
  • Status indicator
  • IP54 protection
  • Open area optics
General
Rated power3.1W
CCT6000K
Useful lumen135lm
Light efficacy44lm/W
Beam angle140°
Electrical data
Nominal voltage220-240V
DC input voltage3.2V
Frequency50/60Hz
Rated input current0mA
Power Factor0.5
Inrush current ipeak10.6A
Inrush current time200µs
Max. number of luminaires per miniature circuit breaker B1020
Max. number of luminaires per miniature circuit breaker B1631
Max. number of luminaires per miniature circuit breaker C1032
Max. number of luminaires per miniature circuit breaker C1653
Surge protection500V
Protection classClass II
Functions
DimmabilityNo
SensorNo
EmergencyYes
Power in emergency mode1.0W
Lumen output in emergency mode135lm
CCT in emergency mode6000K
Emergency battery duration3h
Type of emergency operation testNon-maintained
Photometric data
CRIRA80
UGRN/A
SDCM6
Photobiological safety groupRG0
Mounting & Application
Mounting methodSurface mounted
Loop-throughNo
IP ratingIP54
IK ratingIK02
Glow wire test850°C
Lifetime L70/B5050000h
Switching cycles100000
Operating temperature0 - 45°C
Application temperature25°C
Warranty3 years
Materials & Colour
Housing materialPC
Finishing colourWhite
Logistical data

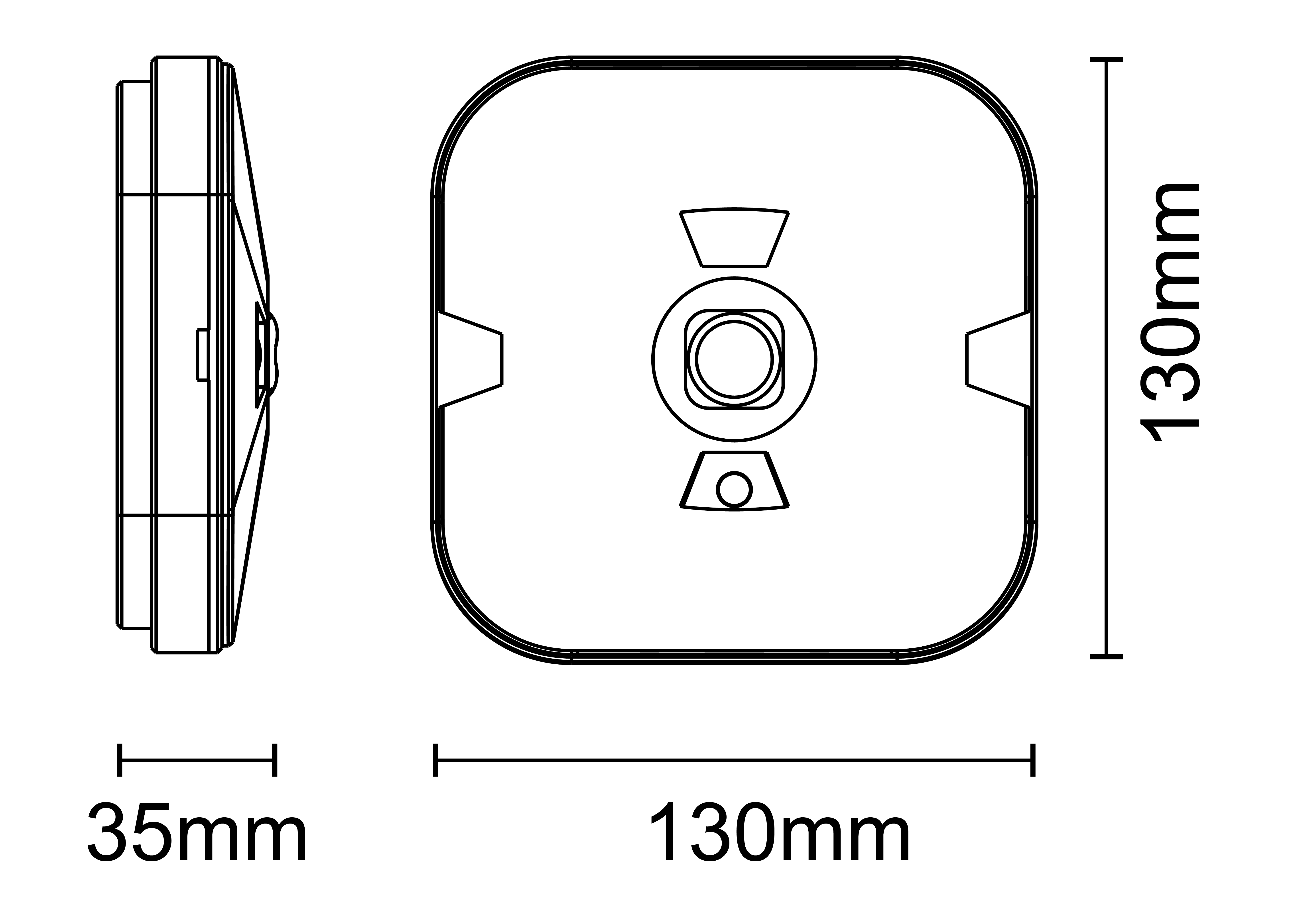

Product length130mm
Product width130mm
Product height35mm
Product net weight0.243kg
