- Maintained / non-maintained operation mode
- IP65 protection from water and dust
- Durable, corrosion resistant polycarbonate housing
- Status indicator
- All direction exit sign stickers included
- Light in weight, easy installation
General | |
---|---|
Rated power | 4.0W |
CCT | 6500K |
Useful lumen | 140lm |
Light efficacy | 35lm/W |
Beam angle | 120° |
Electrical data | |
---|---|
Nominal voltage | 220-240V |
DC input voltage | 3.6V |
Frequency | 50/60Hz |
Rated input current | 0mA |
Power Factor | 0.4 |
Max. number of luminaires per miniature circuit breaker B10 | 20 |
Max. number of luminaires per miniature circuit breaker B16 | 28 |
Max. number of luminaires per miniature circuit breaker C10 | 25 |
Max. number of luminaires per miniature circuit breaker C16 | 40 |
Surge protection | 500V |
Protection class | Class II |
Functions | |
---|---|
Dimmability | No |
Sensor | No |
Emergency | Yes |
Power in emergency mode | 4.0W |
Lumen output in emergency mode | 140lm |
CCT in emergency mode | 6500K |
Emergency battery duration | 3h |
Type of emergency operation test | Maintained/Non-maintained |
Photometric data | |
---|---|
CRI | RA70 |
UGR | N/A |
SDCM | 6 |
Photobiological safety group | RG0 |
Mounting & Application | |
---|---|
Mounting method | Surface mounted |
Loop-through | No |
IP rating | IP65 |
IK rating | IK03 |
Glow wire test | 850°C |
Switching cycles | 100000 |
Operating temperature | 0 - 40°C |
Application temperature | 25°C |
Warranty | 3 years |
Materials & Colour | |
---|---|
Housing material | PC |
Finishing colour | White |
Logistical data | |
---|---|

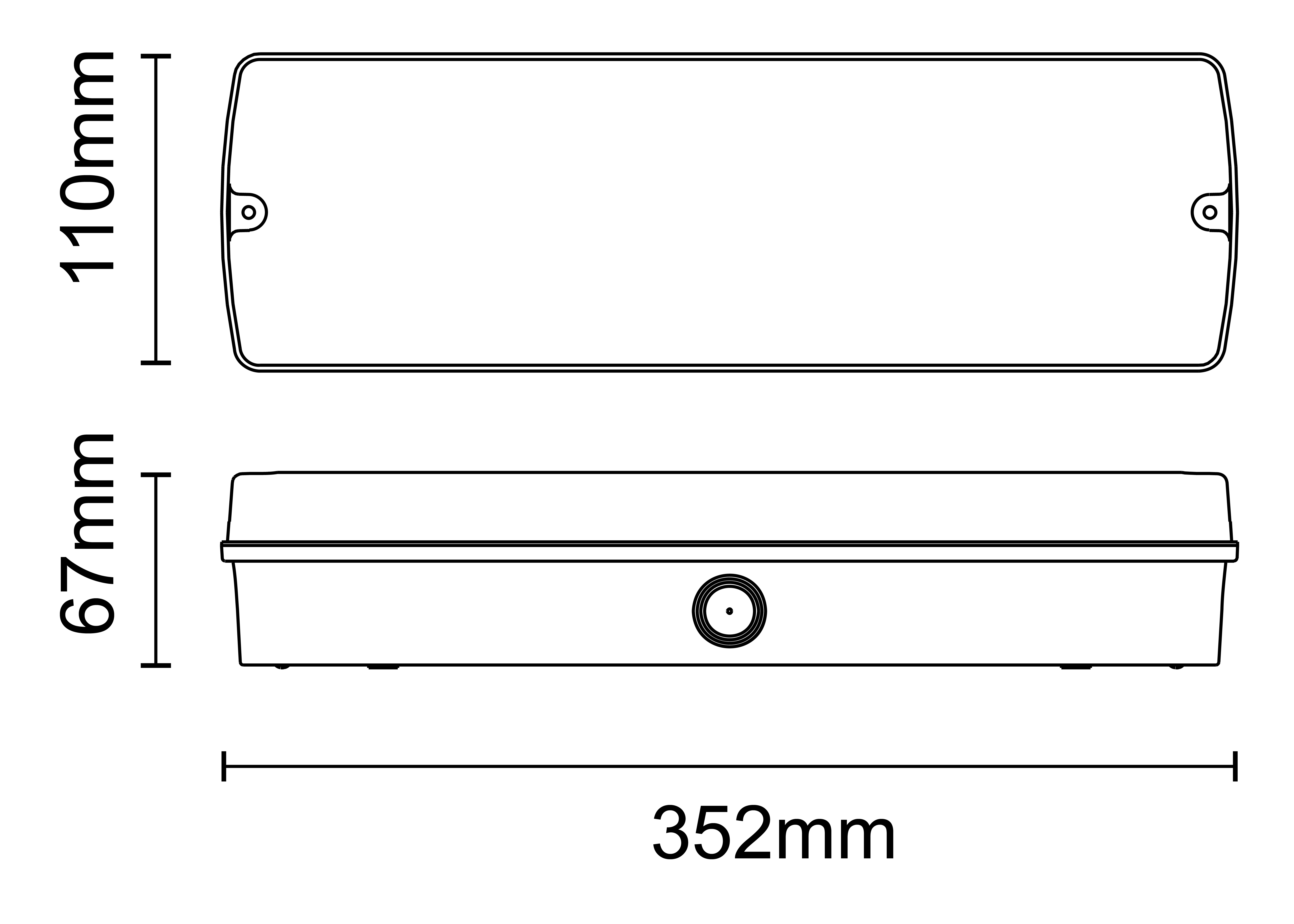

Product length | 352mm |
Product width | 110mm |
Product height | 67mm |
Product net weight | 0.610kg |
