- Delivers uniform light distribution
- 50% energy saving compared with fluorescent lighting
- 3-step multipower (10/15/22W)
- IP66 waterproof protection and IK10 rated vandal resistant
- Dual CCT (3000/4000K)
- Captive screw and easy installation on-site
- Sensor and black bezel available
General | |
---|---|
Rated power | 10/15/22W |
CCT | 3000K 4000K |
Useful lumen | 900/1350/1800lm 1000/1500/2000lm |
Light efficacy | 90/90/82lm/W 100/100/91lm/W |
Beam angle | 110° |
Electrical data | |
---|---|
Nominal voltage | 220-240V |
Frequency | 50/60Hz |
Rated input current | 55/90/125mA |
Power Factor | >0.9 |
THD | <30% |
Inrush current ipeak | 25.4A |
Inrush current time | 200µs |
Max. number of luminaires per miniature circuit breaker B10 | 8 |
Max. number of luminaires per miniature circuit breaker B16 | 13 |
Max. number of luminaires per miniature circuit breaker C10 | 14 |
Max. number of luminaires per miniature circuit breaker C16 | 22 |
Surge protection | 500V |
Protection class | Class II |
Functions | |
---|---|
Dimmability | No |
Sensor | No |
Master-Slave | No |
Emergency | No |
Photometric data | |
---|---|
CRI | RA80 |
UGR | N/A |
SDCM | 6 |
Flicker percentage | ≤3% @100Hz |
Photobiological safety group | RG0 |
Mounting & Application | |
---|---|
Mounting method | Surface mounted |
Loop-through | No |
IP rating | IP66 |
IK rating | IK10 |
Glow wire test | 850°C |
Lifetime L70/B50 | 50000h |
Switching cycles | 100000 |
Operating temperature | -30 - 50°C |
Application temperature | 25°C |
Warranty | 5 years |
Materials & Colour | |
---|---|
Housing material | PC |
Cover material | Anti-UV PC |
Finishing colour | White |
Logistical data | |
---|---|

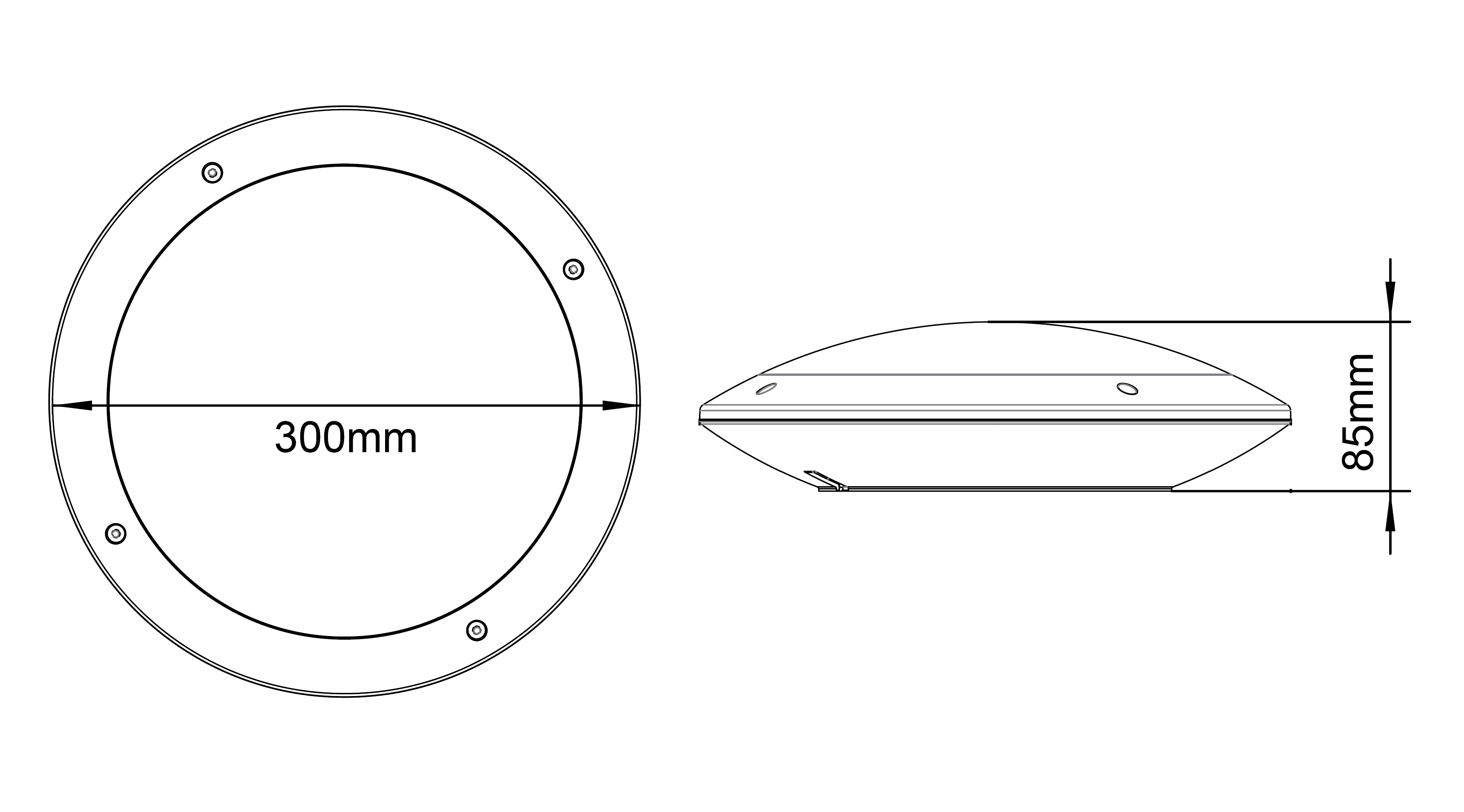

Product height | 85mm |
Product diameter | 300mm |
Product net weight | 0.825kg |
