- A cost-effective solution offering excellent value for money
- 3-step multipower (12/18/24W) and 3-step CCT (3000/4000/5700K)
- Anti-UV PC cover
- Schutzart IP65 und Schlagfestigkeit IK10
- Microwave motion sensor kit available with standby dimming and master-slave function
| General | |
|---|---|
| Rated power | 12/18/24W |
| CCT | 3000K 4000K 5700K |
| Useful lumen | 1320/1980/2640lm 1500/2250/3000lm 1320/1980/2640lm |
| Light efficacy | 110lm/W 125lm/W 110lm/W |
| Beam angle | 110° |
| Electrical data | |
|---|---|
| Nominal voltage | 220-240V |
| DC input voltage | 220-260V |
| Frequency | 50/60Hz |
| Rated input current | 60/80/105mA |
| Power Factor | 0.9 |
| THD | 0.41 |
| Inrush current ipeak | 12.0A |
| Inrush current time | 190µs |
| Max. number of luminaires per miniature circuit breaker B10 | 20 |
| Max. number of luminaires per miniature circuit breaker B16 | 32 |
| Max. number of luminaires per miniature circuit breaker C10 | 33 |
| Max. number of luminaires per miniature circuit breaker C16 | 35 |
| Surge protection | 1000V |
| Protection class | Class II |
| Functions | |
|---|---|
| Dimmability | Standby dimming via optional sensor 712873 |
| Dimming range | 0% - 20% |
| Sensor | No |
| Master-Slave | No |
| Emergency | No |
| Photometric data | |
|---|---|
| CRI | RA80 |
| UGR | N/A |
| SDCM | 6 |
| Flicker percentage | ≤5% @100Hz |
| Photobiological safety group | RG0 |
| Mounting & Application | |
|---|---|
| Mounting method | Surface mounted |
| Loop-through | Yes |
| IP rating | IP65 |
| IK rating | IK10 |
| Glow wire test | 650°C |
| Lifetime L70/B50 | 30000h |
| Switching cycles | 100000 |
| Operating temperature | -20 - 40°C |
| Application temperature | 25°C |
| Warranty | 3 years |
| Materials & Colour | |
|---|---|
| Housing material | PC |
| Cover material | Anti-UV PC |
| Finishing colour | White |
| Logistical data | |
|---|---|
| EAN | 4892657129922 |

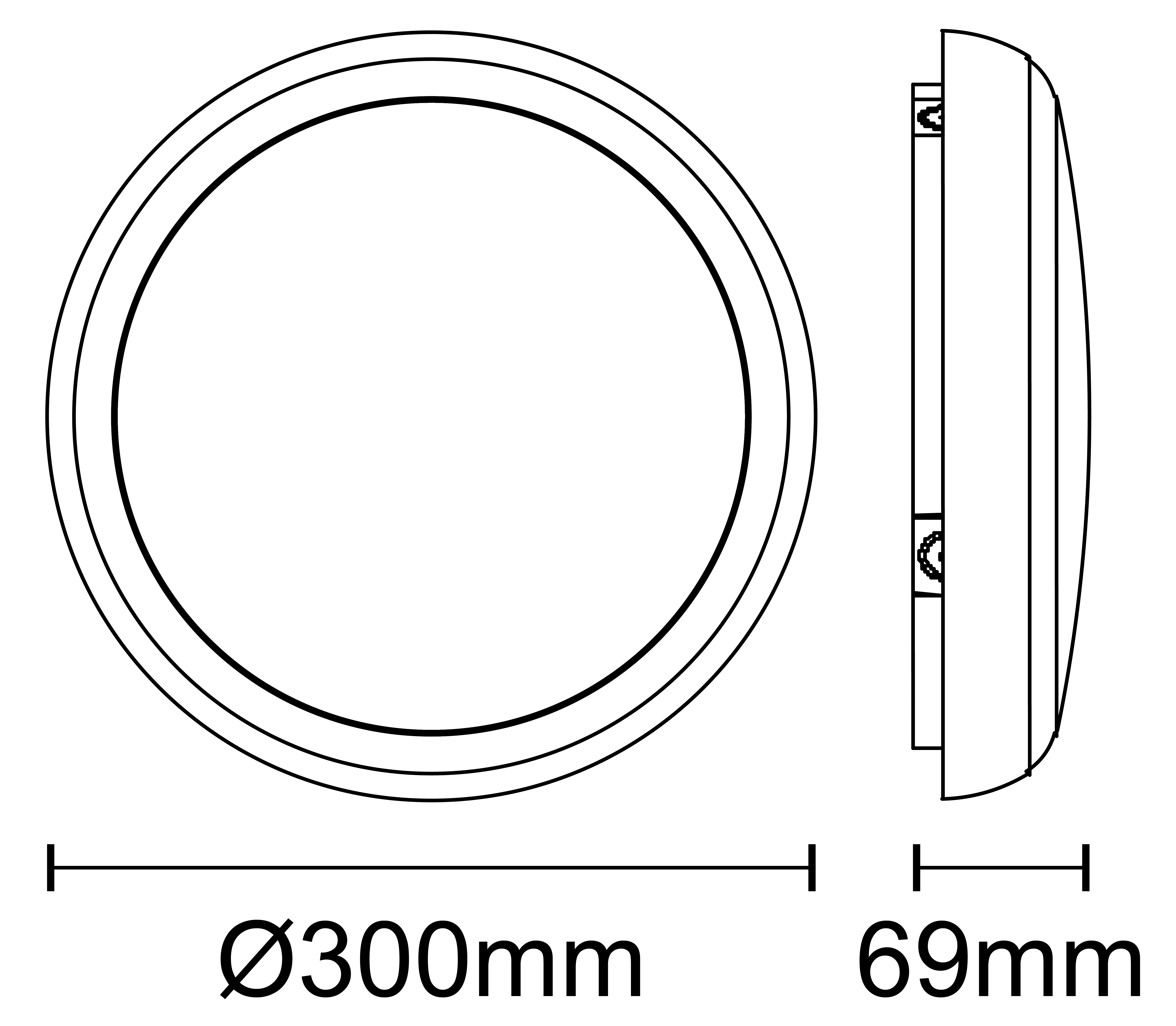

| Product height | 69mm |
| Product diameter | 300mm |
| Product net weight | 0.730kg |
