- Light weight panel facilitates easy installation and maintenance
- Equipped with flicker free (≤3%) driver
- Four-step lumen output switching via driver
- Efficacy up to 120lm/W
- Long lifetime of 50.000h L80B10 at Ta 25°C
- 5 years warranty
- DALI2.0 dimmable driver available
| General | |
|---|---|
| Rated power | 24/28/32/35W |
| CCT | 3000K |
| Useful lumen | 2700/3100/3600/3900lm |
| Light efficacy | 112/110/112/111lm/W |
| Beam angle | 90° |
| Electrical data | |
|---|---|
| Nominal voltage | 220-240V |
| Frequency | 50/60Hz |
| Rated input current | 200mA |
| Power Factor | >0.9 |
| THD | 20% |
| Inrush current ipeak | 30.0A |
| Inrush current time | 170µs |
| Max. number of luminaires per miniature circuit breaker B10 | 12 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C10 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 33 |
| Surge protection | 1000V |
| Protection class | Class II |
| Functions | |
|---|---|
| Dimmability | No |
| Sensor | No |
| Emergency | No |
| Photometric data | |
|---|---|
| CRI | RA80 |
| UGR | UGR19 |
| SDCM | 4 |
| Flicker percentage | ≤3% @100Hz |
| Photobiological safety group | RG0 |
| Mounting & Application | |
|---|---|
| Mounting method | Recessed / Surface mounted / Suspended |
| Loop-through | Yes |
| IP rating | IP40 |
| IK rating | IK02 |
| Glow wire test | 650°C |
| Lifetime L70/B50 | 70000h |
| Lifetime L80/B10 | 50000h |
| Switching cycles | 100000 |
| Operating temperature | -30 - 40°C |
| Application temperature | 25°C |
| Warranty | 5 years |
| Materials & Colour | |
|---|---|
| Housing material | Aluminium + Metal |
| Cover material | PS |
| Finishing colour | White |
| Logistical data | |
|---|---|
| EAN | 4892657123234 |

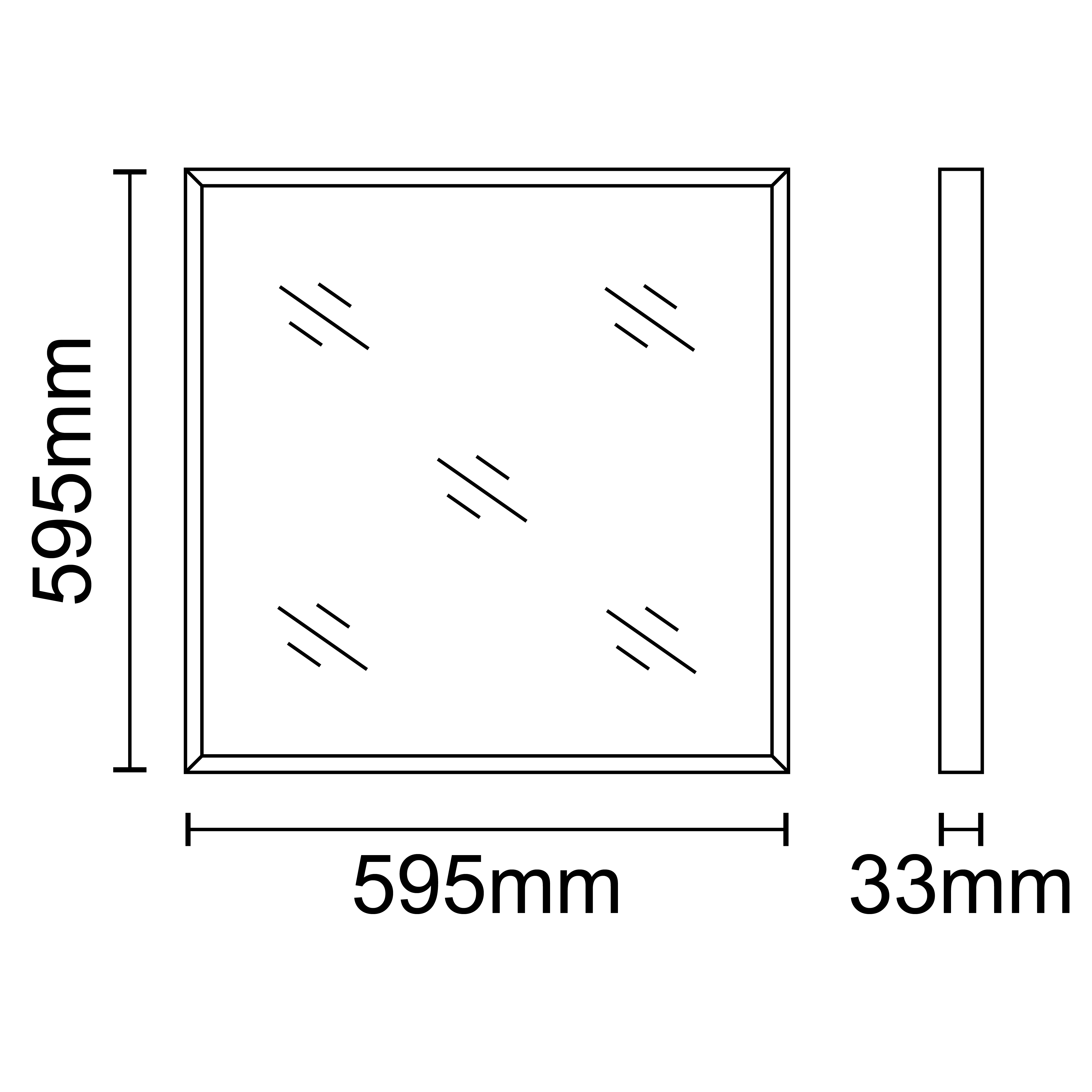

| Product length | 595mm |
| Product width | 595mm |
| Product height | 33mm |
| Product net weight | 1.700kg |
