- New generation of slim aluminium linear profile fixtures with understated design fits any interior
- Louvre cell design with low glare rating UGR16 for high visual comfort, ideal for individual task lighting
- Modular system for linear series connection available
- Dual CCT 3000/4000K
- DALI2.0 dimmable driver
| General | |
|---|---|
| Rated power | 29.0W |
| CCT | 3000K 4000K |
| Useful lumen | 3200lm 3500lm |
| Light efficacy | 110lm/W 121lm/W |
| Beam angle | 65° |
| Electrical data | |
|---|---|
| Nominal voltage | 220-240V |
| Frequency | 50/60Hz |
| Rated input current | Max. 250mA |
| Power Factor | >0.9 |
| THD | 0.15 |
| Inrush current ipeak | 4.1A |
| Inrush current time | 182µs |
| Max. number of luminaires per miniature circuit breaker B10 | 45 |
| Max. number of luminaires per miniature circuit breaker B16 | 72 |
| Max. number of luminaires per miniature circuit breaker C10 | 45 |
| Max. number of luminaires per miniature circuit breaker C16 | 72 |
| Surge protection | 1000V |
| Protection class | Class I |
| Functions | |
|---|---|
| Dimmability | DALI dim |
| Sensor | No |
| Emergency | No |
| Photometric data | |
|---|---|
| CRI | RA80 |
| UGR | UGR16 |
| SDCM | 4 |
| Flicker percentage | ≤3% @100Hz |
| Photobiological safety group | RG0 |
| Mounting & Application | |
|---|---|
| Mounting method | Surface mounted / Suspended |
| Loop-through | No |
| IP rating | IP20 |
| IK rating | IK06 |
| Glow wire test | 650°C |
| Lifetime L70/B50 | 70000h |
| Lifetime L80/B10 | 50000h |
| Switching cycles | 100000 |
| Operating temperature | -20 - 45°C |
| Application temperature | 25°C |
| Warranty | 5 years |
| Materials & Colour | |
|---|---|
| Housing material | Aluminium |
| Other material | PET diffuser |
| Finishing colour | White |
| Logistical data | |
|---|---|

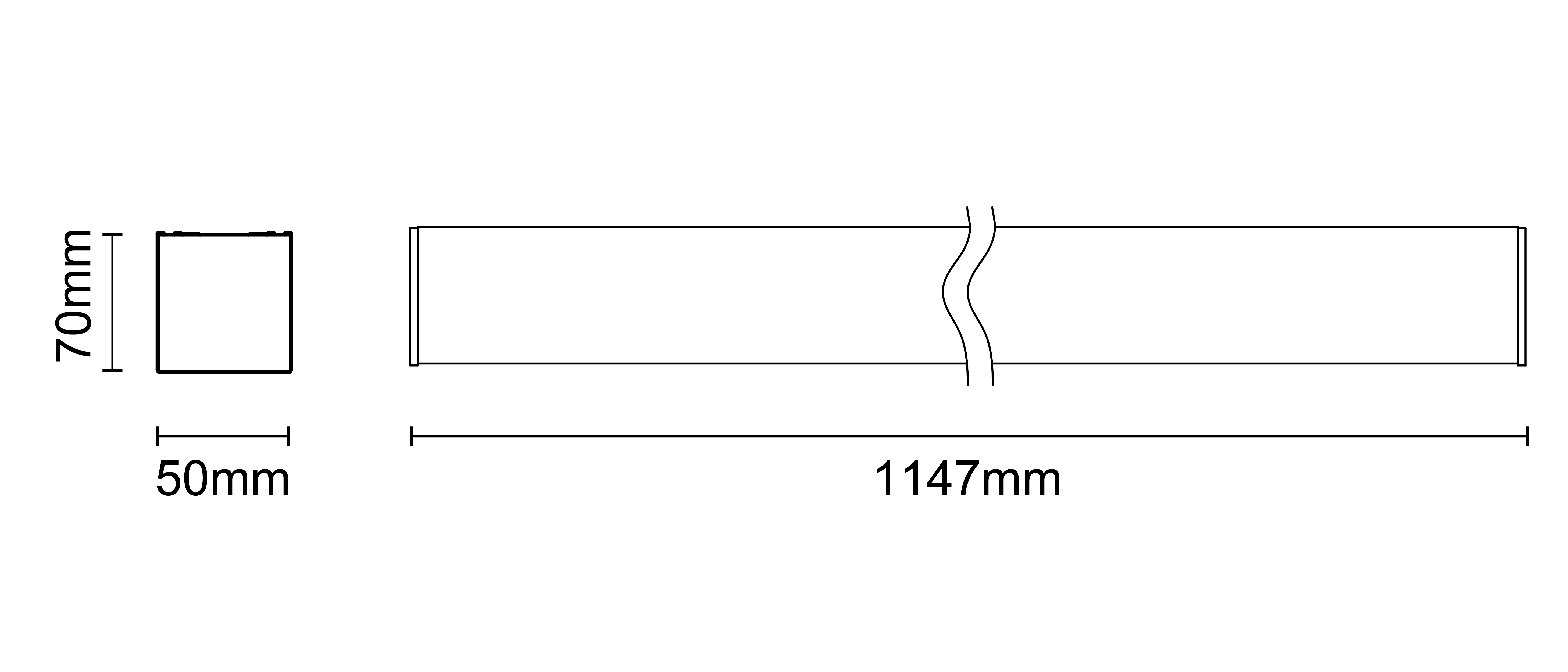

| Product length | 1147mm |
| Product width | 50mm |
| Product height | 70mm |
| Product net weight | 2.150kg |
