- Three CCT options in one product: 2700/3000/4000K
- Triac dimming with smooth performance
- Slim design suitable for limited ceiling space
- Loop-through function to further enhance ease of installation
- Water resistant IP65 rated for locations such as bathroom and outdoor
- Tiltable version with tilt angle up to 15°
General | |
---|---|
Rated power | 7.0W |
CCT | 2700K 3000K 4000K |
Useful lumen | 470lm 490lm 520lm |
Beam angle | 36° |
Tilt angle | 15° |
Electrical data | |
---|---|
Nominal voltage | 220-240V |
Frequency | 50Hz |
Rated input current | 40mA |
Power Factor | >0.9 |
THD | <25% |
Inrush current ipeak | 6.0A |
Inrush current time | 100µs |
Max. number of luminaires per miniature circuit breaker B10 | 77 |
Max. number of luminaires per miniature circuit breaker B16 | 128 |
Max. number of luminaires per miniature circuit breaker C10 | 123 |
Max. number of luminaires per miniature circuit breaker C16 | 209 |
Surge protection | 500V |
Protection class | Class II |
Functions | |
---|---|
Dimmability | Triac dim |
Dimming range | 10-100% |
Sensor | No |
Emergency | No |
Photometric data | |
---|---|
CRI | RA80 |
UGR | N/A |
SDCM | 6 |
Flicker percentage | ≤20% @100Hz |
Photobiological safety group | RG1 |
Mounting & Application | |
---|---|
Mounting method | Recessed |
Loop-through | Yes |
IP rating | IP65 |
IK rating | IK02 |
Glow wire test | 750°C |
Lifetime L70/B50 | 50000h |
Switching cycles | 100000 |
Operating temperature | -30 - 40°C |
Application temperature | 25°C |
Warranty | 5 years |
Materials & Colour | |
---|---|
Housing material | Metal |
Cover material | PC |
Finishing colour | White |
Logistical data | |
---|---|

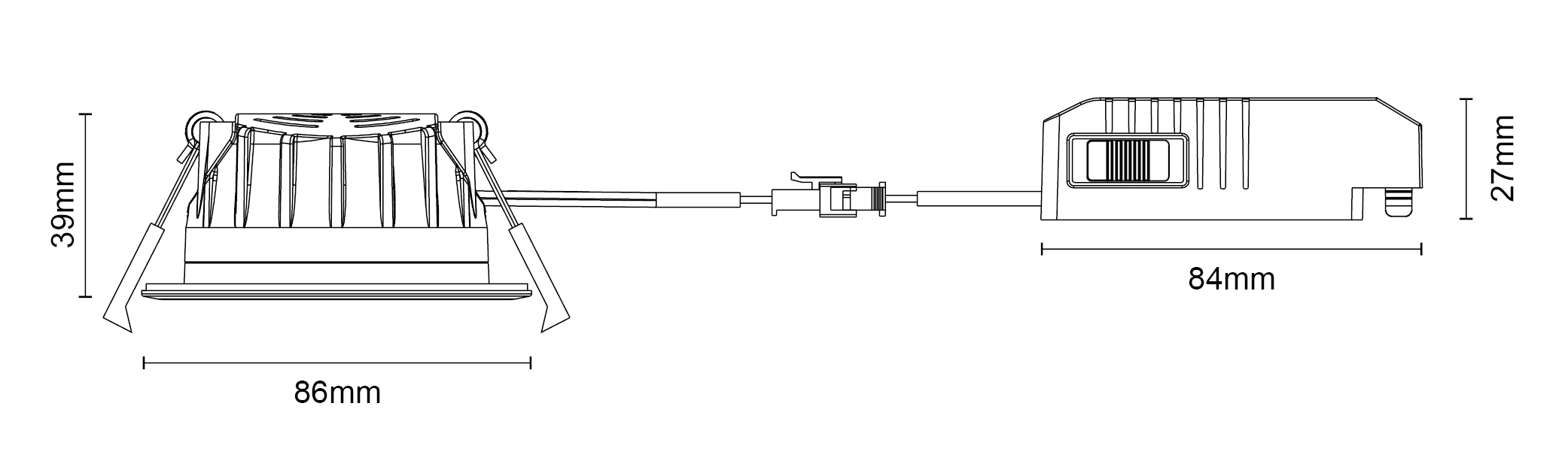

Product height | 39mm |
Product diameter | 86mm |
Cut-out diameter | 68mm |
Product net weight | 0.208kg |
