- IP65 waterproof protection and IK08 rated vandal resistant
- Cost effective LED outdoor bulkhead solution
- Homogenous light output
- Loop-through function to further enhance ease of installation
| General | |
|---|---|
| Rated power | 18.0W |
| CCT | 4000K |
| Useful lumen | 1650lm |
| Light efficacy | 92lm/W |
| Beam angle | 120° |
| Electrical data | |
|---|---|
| Nominal voltage | 220-240V |
| Frequency | 50/60Hz |
| Rated input current | 90mA |
| Power Factor | >0.9 |
| THD | 0.34 |
| Inrush current ipeak | 7.88A |
| Inrush current time | 22.4µs |
| Max. number of luminaires per miniature circuit breaker B10 | 71 |
| Max. number of luminaires per miniature circuit breaker B16 | 113 |
| Max. number of luminaires per miniature circuit breaker C10 | 117 |
| Max. number of luminaires per miniature circuit breaker C16 | 192 |
| Surge protection | 500V |
| Protection class | Class II |
| Functions | |
|---|---|
| Dimmability | No |
| Sensor | No |
| Emergency | No |
| Photometric data | |
|---|---|
| CRI | RA80 |
| UGR | N/A |
| SDCM | 6 |
| Flicker percentage | ≤3% @100Hz |
| Photobiological safety group | RG0 |
| Mounting & Application | |
|---|---|
| Mounting method | Surface mounted |
| Loop-through | Yes |
| IP rating | IP65 |
| IK rating | IK08 |
| Glow wire test | 650°C |
| Lifetime L70/B50 | 30000h |
| Switching cycles | 100000 |
| Operating temperature | -30 - 50°C |
| Application temperature | 25°C |
| Warranty | 3 years |
| Materials & Colour | |
|---|---|
| Housing material | PC |
| Cover material | PC |
| Finishing colour | White |
| Logistical data | |
|---|---|

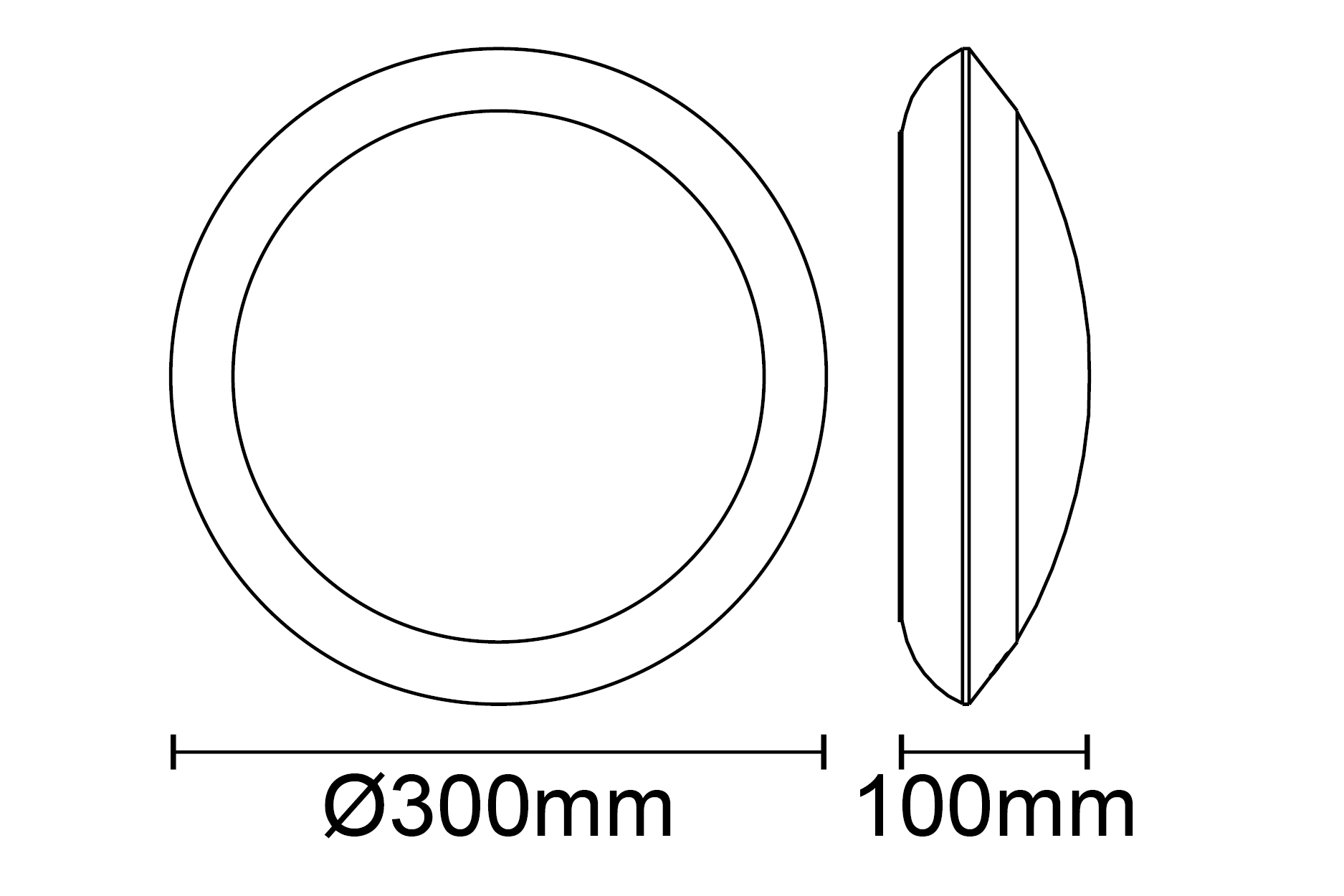

| Product height | 100mm |
| Product diameter | 300mm |
| Product net weight | 0.750kg |
