Waterproof > ROCCA

  • Replacement for traditional waterproof batten
  • Durable water and vandal resistant construction with IP65 and IK08 rating
  • Easy installation and toolless wiring
  • Durable stainless steel clips
General
Rated power28.0W
CCT4000K
Useful lumen3600lm
Light efficacy129lm/W
Beam angle110°
Electrical data
Nominal voltage220-240V
Frequency50/60Hz
Rated input current135mA
Power Factor>0.9
THD0.15
Inrush current ipeak30.0A
Inrush current time60µs
Max. number of luminaires per miniature circuit breaker B1019
Max. number of luminaires per miniature circuit breaker B1630
Max. number of luminaires per miniature circuit breaker C1031
Max. number of luminaires per miniature circuit breaker C1650
Surge protection1000V
Protection classClass I
Functions
DimmabilityNo
SensorNo
EmergencyNo
Photometric data
CRIRA80
UGRN/A
SDCM6
Flicker percentage≤3% @100Hz
Photobiological safety groupRG0
Mounting & Application
Mounting methodSurface mounted / Suspended
Loop-throughNo
IP ratingIP65
IK ratingIK08
Glow wire test850°C
Lifetime L70/B5040000h
Switching cycles100000
Operating temperature-30 - 50°C
Application temperature25°C
Warranty3 years
Materials & Colour
Housing materialABS
Cover materialAnti-UV PC
Finishing colourGrey
Logistical data

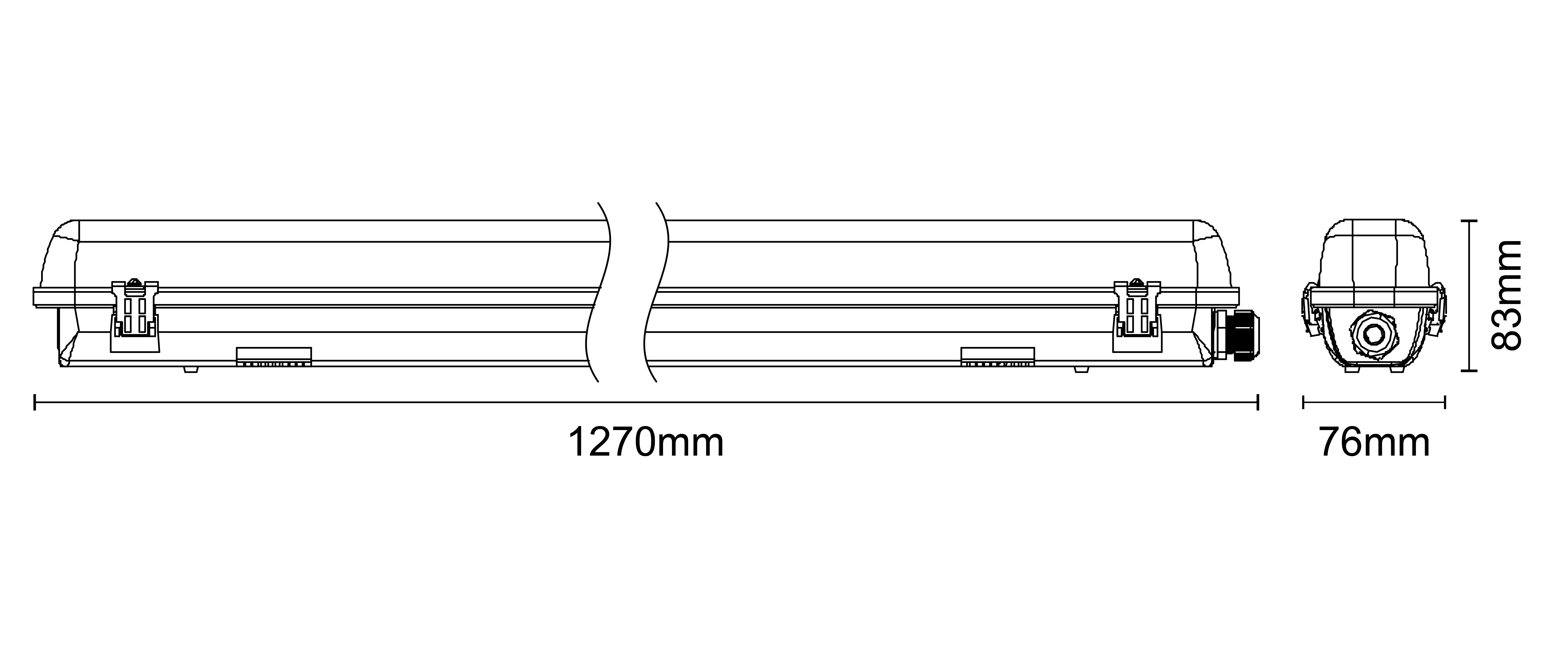

Product length1270mm
Product width76mm
Product height83mm
Product net weight1.288kg

Accessories
