Highbay > GEO 2

  • Easy installation with single point hook mounting design
  • High system luminous efficacy up to 165lm/W
  • Long lifetime of 50.000h L80B10 at Ta 25°C
  • IP65 and IK08 protection
  • Compatible with microwave sensor, with standby dimming (configuring by optional remote control)
  • Equipped with flicker free (≤3%) driver (Pst ≤1.0 & SVM ≤ 0.4) to avoid stroboscopic effect to get rid of danger of rotating components in machinery
  • DALI2.0 dimmable driver
General
Rated power165.0W
CCT4000K
Useful lumen27200lm
Light efficacy165lm/W
Beam angle110°
Electrical data
Nominal voltage220-240V
Frequency50/60Hz
Rated input current800mA
Power Factor>0.9
THD0.15
Inrush current ipeak16.0A
Inrush current time1000µs
Max. number of luminaires per miniature circuit breaker B105
Max. number of luminaires per miniature circuit breaker B167
Max. number of luminaires per miniature circuit breaker C107
Max. number of luminaires per miniature circuit breaker C1612
Surge protection4000V
Protection classClass I
Functions
DimmabilityDALI dim
Dimming range10-100%
SensorNo
EmergencyNo
Photometric data
CRIRA80
UGRN/A
SDCM6
Flicker percentage≤3% @100Hz
Photobiological safety groupRG1
Mounting & Application
Mounting methodSurface mounted / Suspended
Loop-throughNo
IP ratingIP65
IK ratingIK08
Glow wire test650°C
Lifetime L70/B5070000h
Lifetime L80/B1050000h
Switching cycles100000
Operating temperature-30 - 50°C
Application temperature25°C
Warranty5 years
Materials & Colour
Housing materialGraphene
Other materialPC
Finishing colourBlack
Logistical data

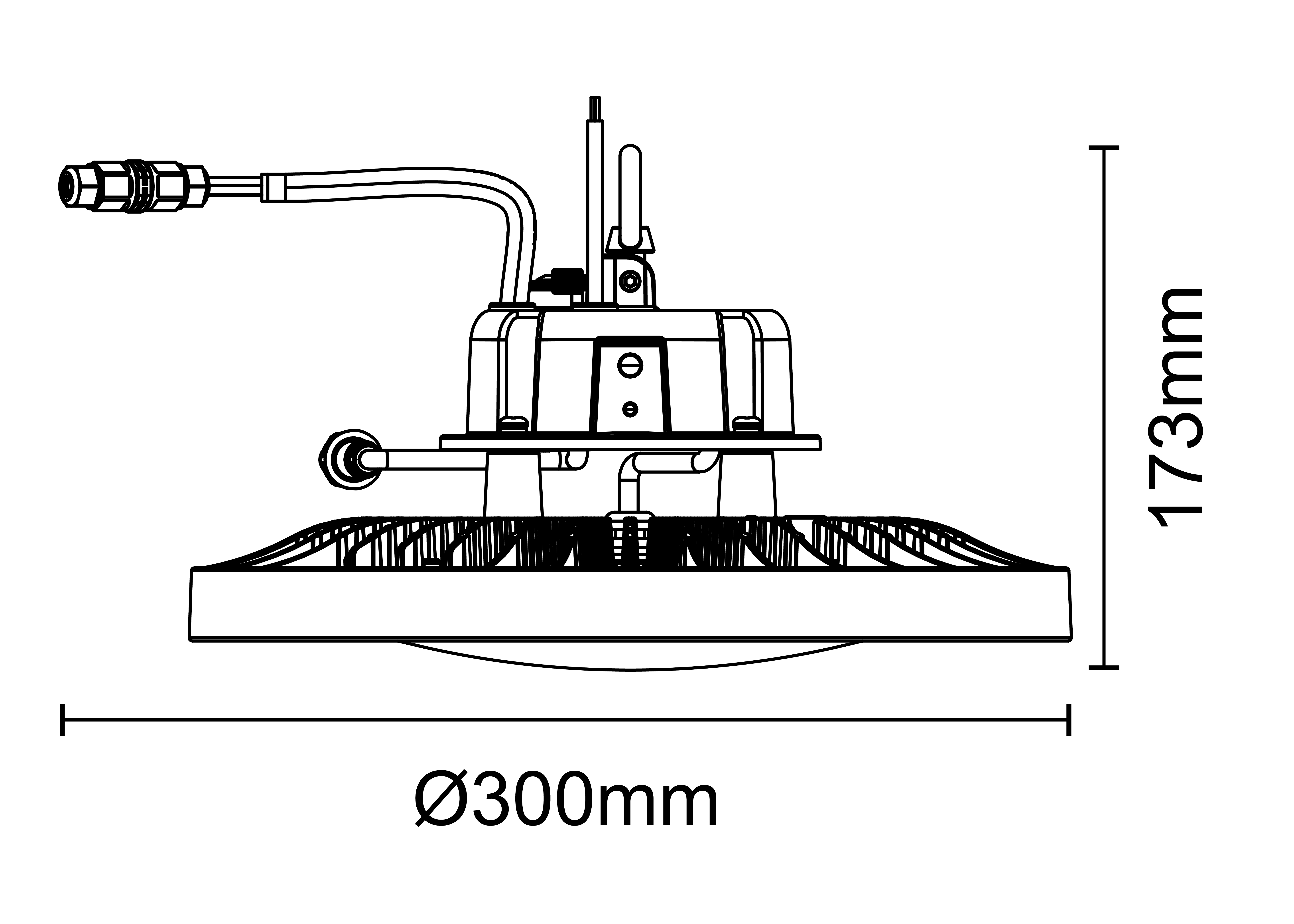

Product height173mm
Product diameter300mm
Product net weight4.100kg

Accessories

Megaman

HB GEO2 Microwave motion sensor kit

Megaman

HB GEO2 Remote control

Megaman

HB GEO2 Surface bracket

Megaman

HB GEO2 Reflector Transparent 70°

Ceotis

HB GEO2 Reflector Aluminium 90°

Megaman

HB Safety cable kit 1m
