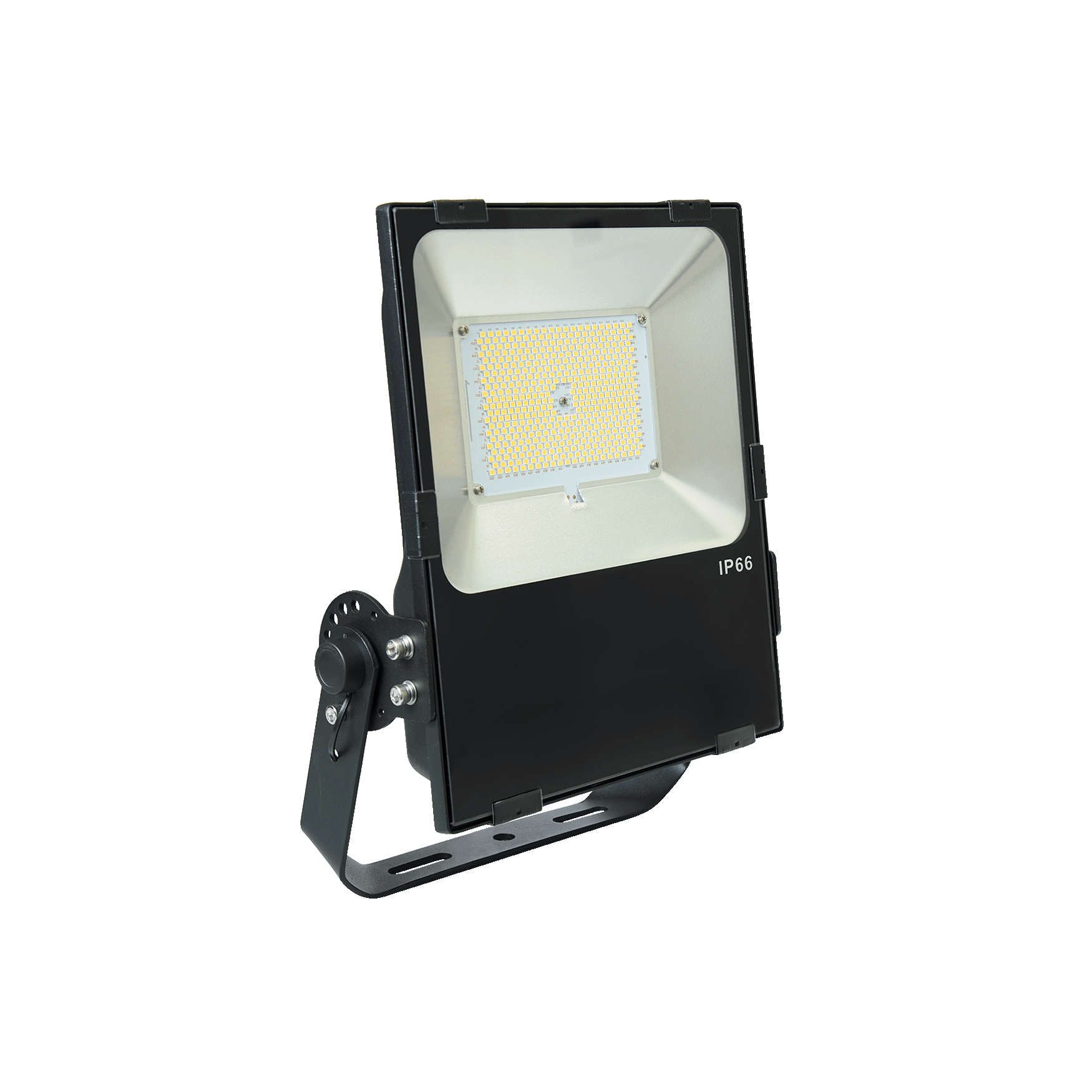

- Robust die-cast aluminium body, with slim and efficient heat dissipation profile
- Instant light with flicker-free performance
- IP66 waterproof protection and IK08 rated vandal resistant
- High surge protection level: 4000V (L-N) ; 6000V (L,N-PE)
- Equipped with 1M cable, wiring required
- Symmetrical / asymmetrical optics can be used in a wide range of application areas
| General | |
|---|---|
| Rated power | 90.0W |
| CCT | 4000K |
| Useful lumen | 13300lm |
| Light efficacy | 148lm/W |
| Beam angle | 110° |
| Electrical data | |
|---|---|
| Nominal voltage | 220-240V |
| Frequency | 50/60Hz |
| Rated input current | Max. 470mA |
| Power Factor | >0.9 |
| THD | 0.15 |
| Inrush current ipeak | 88.4A |
| Inrush current time | 102µs |
| Max. number of luminaires per miniature circuit breaker B10 | 1 |
| Max. number of luminaires per miniature circuit breaker B16 | 1 |
| Max. number of luminaires per miniature circuit breaker C10 | 2 |
| Max. number of luminaires per miniature circuit breaker C16 | 2 |
| Surge protection | 4000V |
| Protection class | Class I |
| Functions | |
|---|---|
| Dimmability | No |
| Sensor | No |
| Emergency | No |
| Photometric data | |
|---|---|
| CRI | RA80 |
| UGR | N/A |
| SDCM | 6 |
| Flicker percentage | ≤3% @100Hz |
| Photobiological safety group | RG1 |
| Mounting & Application | |
|---|---|
| Mounting method | Surface mounted |
| Loop-through | No |
| IP rating | IP66 |
| IK rating | IK08 |
| Glow wire test | 850°C |
| Lifetime L70/B50 | 50000h |
| Lifetime L80/B10 | 30000h |
| Switching cycles | 100000 |
| Operating temperature | -30 - 50°C |
| Application temperature | 25°C |
| Warranty | 5 years |
| Materials & Colour | |
|---|---|
| Housing material | Die-cast aluminium |
| Cover material | Tempered glass |
| Finishing colour | Black |
| Logistical data | |
|---|---|
| Product length | 245mm |
| Product width | 300mm |
| Product height | 91mm |
| Product net weight | 3.250kg |
