- Modular downlight with dual power and dual CCT 3000/4000K
- IP54 rated for damp location such as bathroom and kitchen
- Toolless terminal block and loop-through function to further enhance ease of installation
- Multiple sizes available
- Long lifetime of 50.000h L80B10 at Ta 25°C
| General | |
|---|---|
| Rated power | 10/16W |
| CCT | 3000K 4000K |
| Useful lumen | 930/1450lm 1000/1600lm |
| Light efficacy | 93/91lm/W 100/100lm/W |
| Beam angle | 100° |
| Electrical data | |
|---|---|
| Nominal voltage | 220-240V |
| Frequency | 50/60Hz |
| Rated input current | 56/89mA |
| Power Factor | >0.9 |
| THD | <25% |
| Inrush current ipeak | 25.8A |
| Inrush current time | 2.2µs |
| Max. number of luminaires per miniature circuit breaker B10 | 22 |
| Max. number of luminaires per miniature circuit breaker B16 | 34 |
| Max. number of luminaires per miniature circuit breaker C10 | 36 |
| Max. number of luminaires per miniature circuit breaker C16 | 59 |
| Surge protection | 500V |
| Protection class | Class II |
| Functions | |
|---|---|
| Dimmability | No |
| Sensor | No |
| Emergency | No |
| Photometric data | |
|---|---|
| CRI | RA80 |
| SDCM | 4 |
| Flicker percentage | ≤3% @100Hz |
| Photobiological safety group | RG1 |
| Mounting & Application | |
|---|---|
| Mounting method | Recessed |
| Loop-through | Yes |
| IP rating | IP54 |
| Glow wire test | 850°C |
| Lifetime L80/B10 | 50000h |
| Switching cycles | 100000 |
| Operating temperature | -30 - 40°C |
| Application temperature | 25°C |
| Warranty | 5 years |
| Materials & Colour | |
|---|---|
| Housing material | PC + Aluminium |
| Cover material | PC |
| Finishing colour | White |
| Logistical data | |
|---|---|

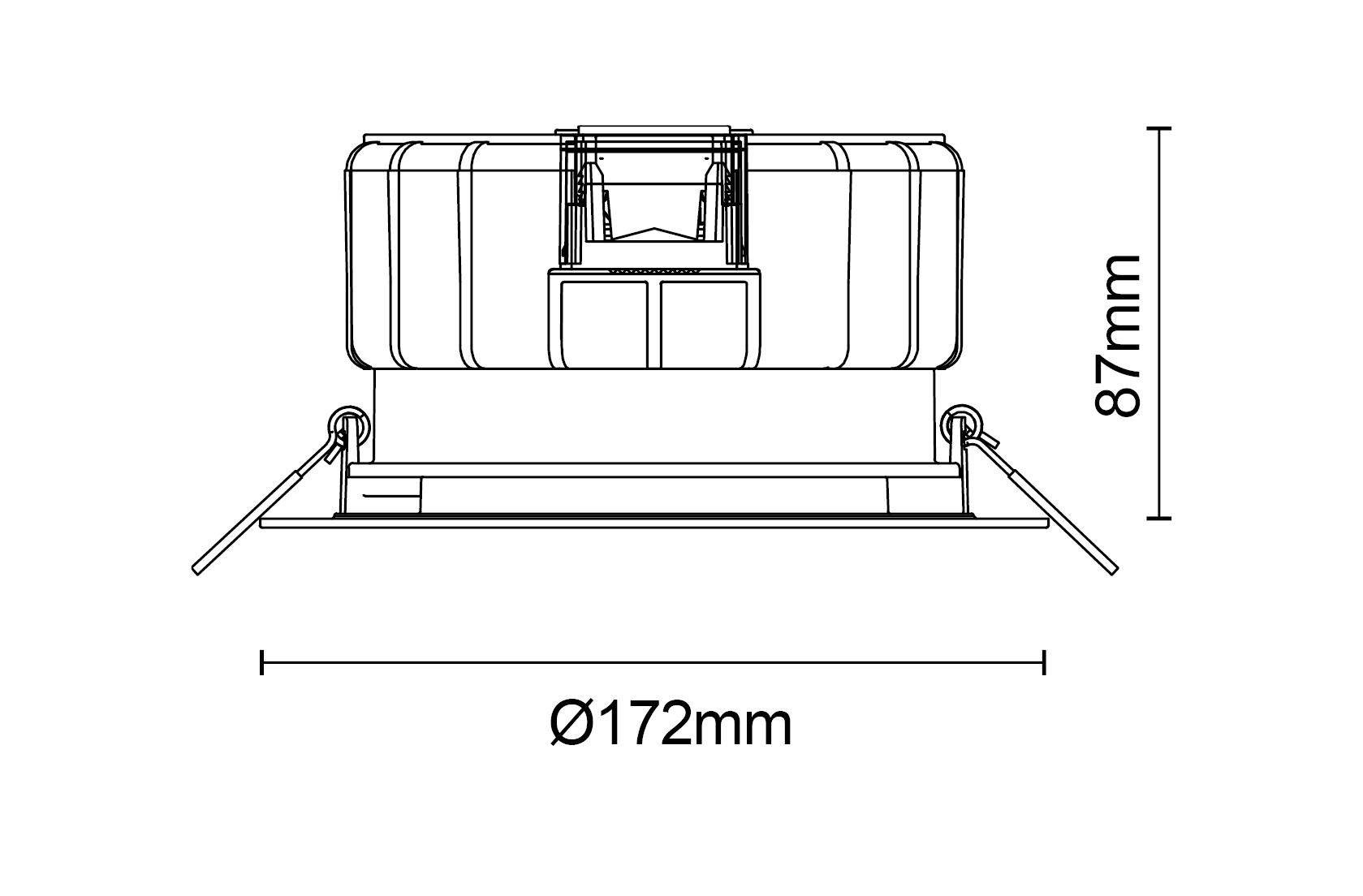

| Product height | 87mm |
| Product diameter | 172mm |
| Cut-out diameter | 150mm |
| Product net weight | 0.550kg |
- Datasheet
- Instruction manual
- DoC_MILENA_Range.pdf
- LDT_MILENA_710625_10W_3000K.ldt
- LDT_MILENA_710625_10W_4000K.ldt
- LDT_MILENA_710625_16W_3000K.ldt
- LDT_MILENA_710625_16W_4000K.ldt
- IES_MILENA_710625_10W_3000K.ies
- IES_MILENA_710625_10W_4000K.ies
- IES_MILENA_710625_16W_3000K.ies
- IES_MILENA_710625_16W_4000K.ies
Accessories
