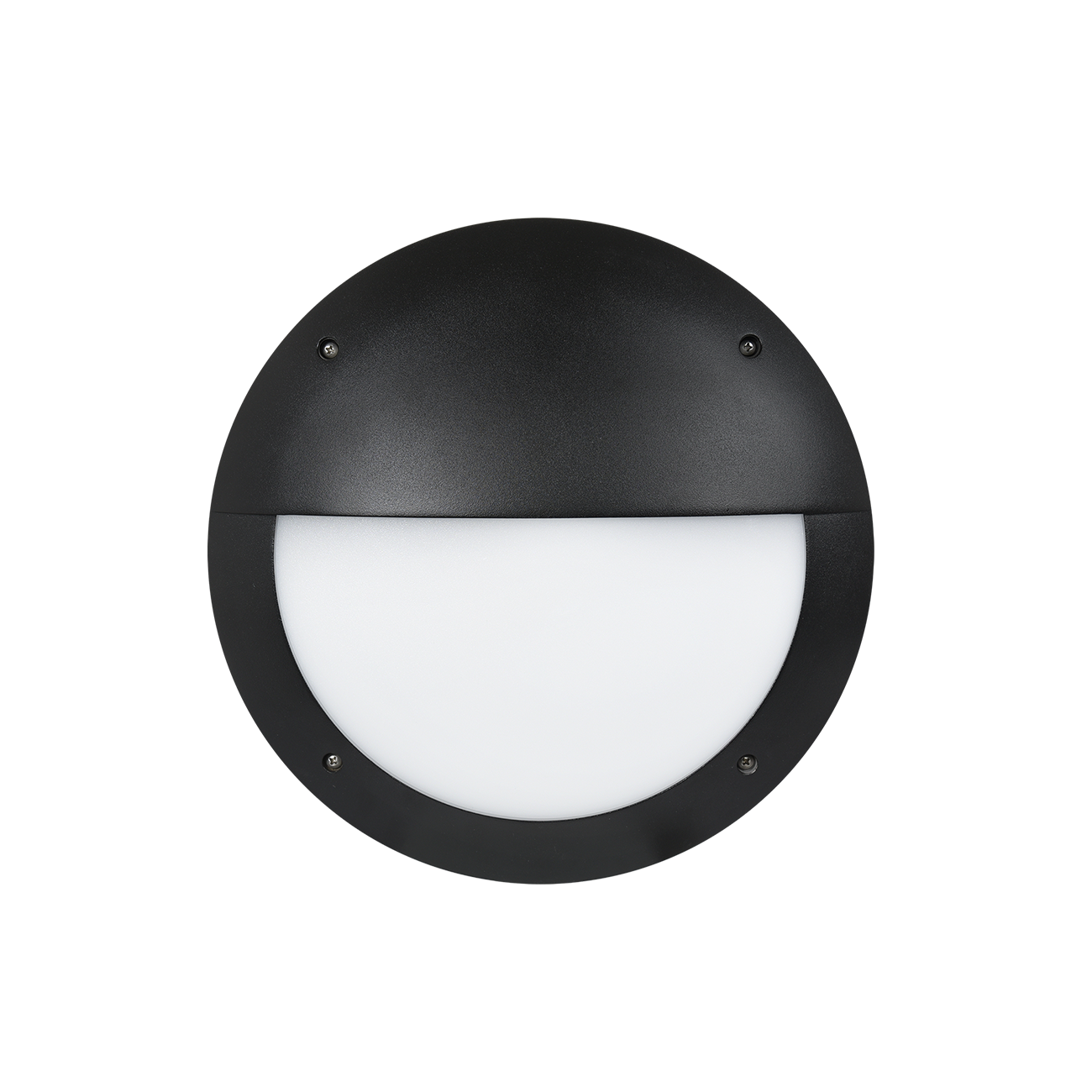

- IP66 waterproof protection and IK10 rated vandal resistant
- Corrosion free tough polycarbonate enclosure & UV resistant
- 3-step multipower and dual CCT 3000/4000K
- Theft-proof screws
- High operating temperature allows use in outdoor environments under extreme weather
- Microwave motion sensor kit available with master-slave function of maximum 250W
- Emergency kit available with 300lm output energy backup lasting for 3 hours
| General | |
|---|---|
| Rated power | 10/15/22W |
| CCT | 3000K 4000K |
| Useful lumen | 610/910/1210lm 650/980/1300lm |
| Light efficacy | 61/61/55lm/W 65/65/59lm/W |
| Beam angle | 110° |
| Electrical data | |
|---|---|
| Nominal voltage | 220-240V |
| DC input voltage | 180-260V |
| Frequency | 50/60Hz |
| Rated input current | 55/90/125mA |
| Power Factor | >0.9 |
| THD | <30% |
| Inrush current ipeak | 25.4A |
| Inrush current time | 200µs |
| Max. number of luminaires per miniature circuit breaker B10 | 8 |
| Max. number of luminaires per miniature circuit breaker B16 | 13 |
| Max. number of luminaires per miniature circuit breaker C10 | 14 |
| Max. number of luminaires per miniature circuit breaker C16 | 22 |
| Surge protection | 500V |
| Protection class | Class II |
| Functions | |
|---|---|
| Dimmability | No |
| Sensor | No |
| Master-Slave | No |
| Emergency | No |
| Photometric data | |
|---|---|
| CRI | RA80 |
| SDCM | 6 |
| Flicker percentage | ≤3% @100Hz |
| Photobiological safety group | RG0 |
| Mounting & Application | |
|---|---|
| Mounting method | Surface mounted |
| Loop-through | Yes |
| IP rating | IP66 |
| IK rating | IK10 |
| Glow wire test | 850°C |
| Lifetime L70/B50 | 50000h |
| Switching cycles | 100000 |
| Operating temperature | -30 - 50°C |
| Application temperature | 25°C |
| Warranty | 5 years |
| Materials & Colour | |
|---|---|
| Housing material | PC |
| Cover material | Anti-UV PC |
| Other material | Aluminium ring |
| Finishing colour | Black |
| Logistical data | |
|---|---|

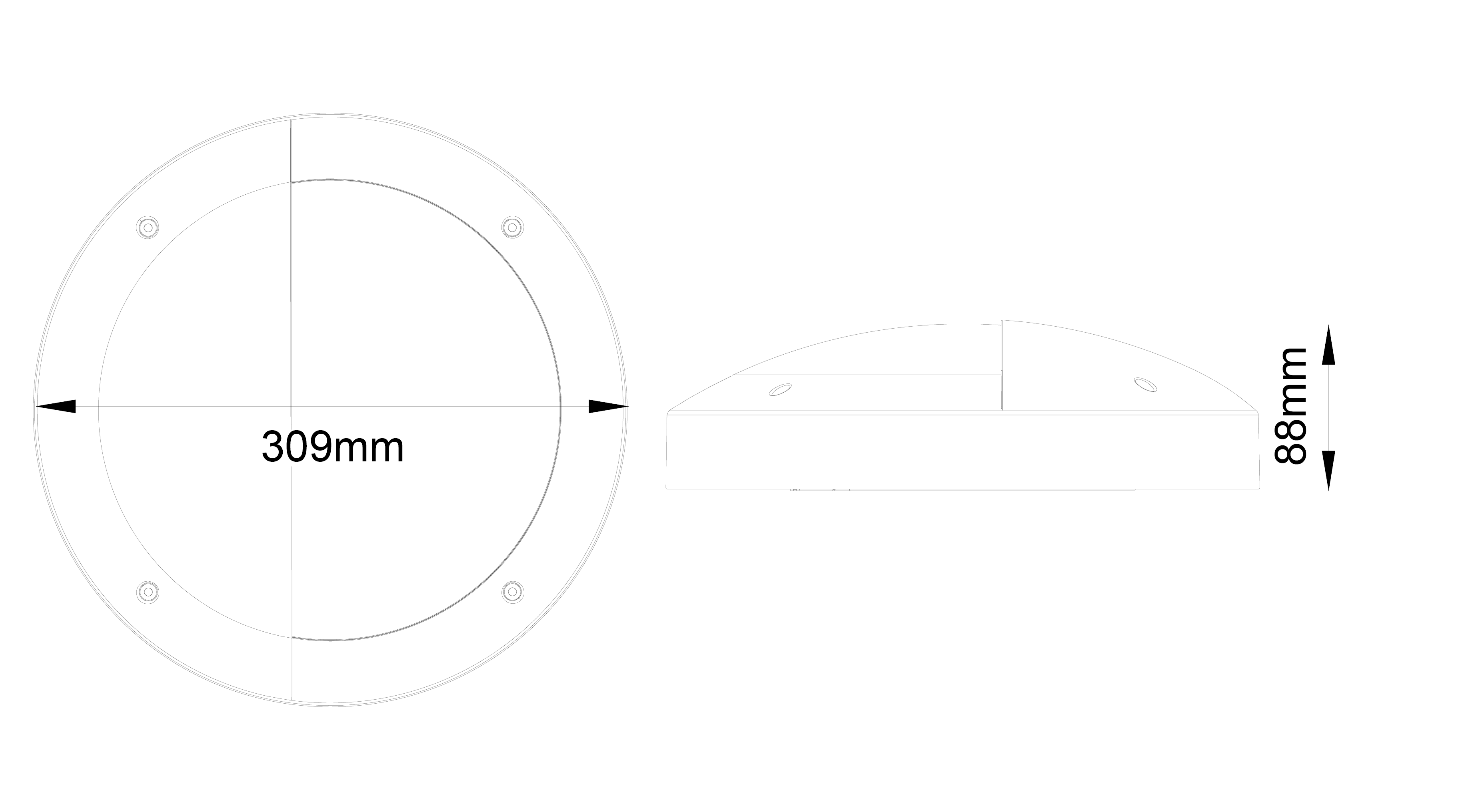

| Product height | 88mm |
| Product diameter | 309mm |
| Product net weight | 1.497kg |
