- Easy cabling solution with terminals that can be pulled out
- Loop in and loop out toolless installation
- Smooth and high transparency opal polycarbonate diffuser
- Built-in aluminium heatsink with excellent heat dissipation
- Loop-through by 4 wires
- IP65 and IK08 rated
- Efficiency up to 121lm/W
General | |
---|---|
Rated power | 50.0W |
CCT | 4000K |
Useful lumen | 6000lm |
Light efficacy | 120lm/W |
Beam angle | 120° |
Electrical data | |
---|---|
Nominal voltage | 220-240V |
Frequency | 50/60Hz |
Rated input current | 242mA |
Power Factor | >0.9 |
THD | 0.3 |
Inrush current ipeak | 26.0A |
Inrush current time | 220µs |
Max. number of luminaires per miniature circuit breaker B10 | 8 |
Max. number of luminaires per miniature circuit breaker B16 | 13 |
Max. number of luminaires per miniature circuit breaker C10 | 13 |
Max. number of luminaires per miniature circuit breaker C16 | 22 |
Surge protection | 1000V |
Protection class | Class II |
Functions | |
---|---|
Dimmability | No |
Sensor | No |
Emergency | No |
Photometric data | |
---|---|
CRI | RA80 |
UGR | N/A |
SDCM | 6 |
Flicker percentage | ≤3% @100Hz |
Photobiological safety group | RG0 |
Mounting & Application | |
---|---|
Mounting method | Surface mounted / Suspended |
Loop-through | Yes |
IP rating | IP65 |
IK rating | IK08 |
Glow wire test | 850°C |
Lifetime L70/B50 | 50000h |
Lifetime L80/B10 | 35000h |
Switching cycles | 100000 |
Operating temperature | -20 - 40°C |
Application temperature | 25°C |
Warranty | 3 years |
Materials & Colour | |
---|---|
Housing material | PC |
Cover material | PC |
Finishing colour | Grey |
Logistical data | |
---|---|

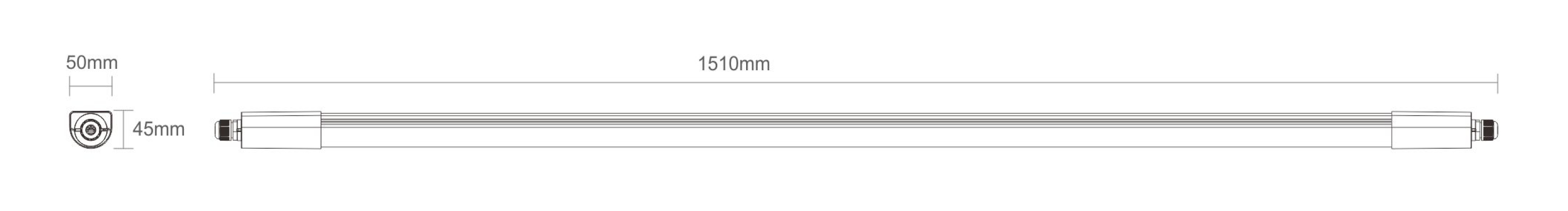

Product length | 1510mm |
Product width | 50mm |
Product height | 45mm |
Product net weight | 0.550kg |
