- Easy cabling solution with terminals that can be pulled out
- Loop in and loop out toolless installation
- Smooth and high transparency opal polycarbonate diffuser
- Built-in aluminium heatsink with excellent heat dissipation
- Loop-through by 4 wires
- IP65 and IK08 rated
- Efficiency up to 121lm/W
| General | |
|---|---|
| Rated power | 33.0W |
| CCT | 4000K |
| Useful lumen | 4000lm |
| Light efficacy | 121lm/W |
| Beam angle | 120° |
| Electrical data | |
|---|---|
| Nominal voltage | 220-240V |
| Frequency | 50/60Hz |
| Rated input current | 159mA |
| Power Factor | >0.9 |
| THD | 0.3 |
| Inrush current ipeak | 24.8A |
| Inrush current time | 180µs |
| Max. number of luminaires per miniature circuit breaker B10 | 8 |
| Max. number of luminaires per miniature circuit breaker B16 | 13 |
| Max. number of luminaires per miniature circuit breaker C10 | 14 |
| Max. number of luminaires per miniature circuit breaker C16 | 23 |
| Surge protection | 1000V |
| Protection class | Class II |
| Functions | |
|---|---|
| Dimmability | No |
| Sensor | No |
| Emergency | No |
| Photometric data | |
|---|---|
| CRI | RA80 |
| UGR | N/A |
| SDCM | 6 |
| Flicker percentage | ≤3% @100Hz |
| Photobiological safety group | RG0 |
| Mounting & Application | |
|---|---|
| Mounting method | Surface mounted / Suspended |
| Loop-through | Yes |
| IP rating | IP65 |
| IK rating | IK08 |
| Glow wire test | 850°C |
| Lifetime L70/B50 | 50000h |
| Lifetime L80/B10 | 35000h |
| Switching cycles | 100000 |
| Operating temperature | -20 - 40°C |
| Application temperature | 25°C |
| Warranty | 3 years |
| Materials & Colour | |
|---|---|
| Housing material | PC |
| Cover material | PC |
| Finishing colour | Grey |
| Logistical data | |
|---|---|

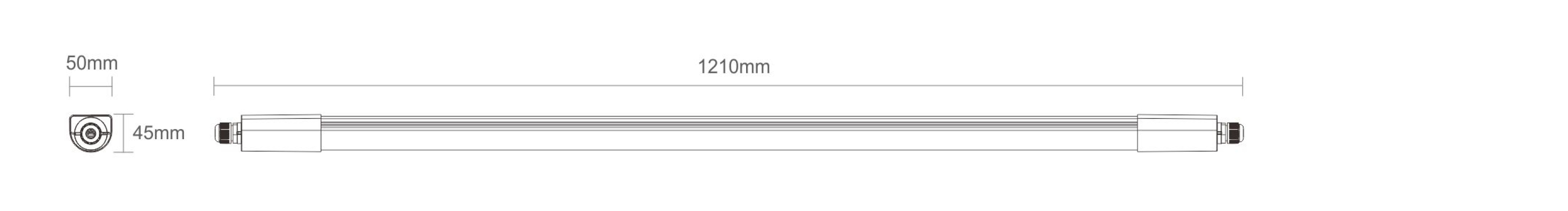

| Product length | 1210mm |
| Product width | 50mm |
| Product height | 45mm |
| Product net weight | 0.460kg |
