- Modular design with replaceable light source and driver as an environmentally friendly solution
- Easy installation with mounting brackets that can be positioned freely on the luminaire
- Cable entries and loop-through function enable linear series connection
- IP66-rated waterproof protection and IK08-rated vandal resistance
- High luminous efficacy up to 147lm/W
- Additional L1, (L2), E, N terminals enable easy connection of emergency kits and sensors, while allowing the formation of multiple independent master-slave groups with the PIR sensor module
| General | |
|---|---|
| Rated power | 17/33W |
| CCT | 4000K |
| Useful lumen | 2500/4800lm |
| Light efficacy | 147/145lm/W |
| Beam angle | 120° |
| Electrical data | |
|---|---|
| Nominal voltage | 220-240V |
| DC input voltage | 180-260V |
| Frequency | 50/60Hz |
| Rated input current | 85/160mA |
| Power Factor | >0.9 |
| THD | <15% |
| Inrush current ipeak | 20.6A |
| Inrush current time | 172µs |
| Max. number of luminaires per miniature circuit breaker B10 | 13 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C10 | 21 |
| Max. number of luminaires per miniature circuit breaker C16 | 34 |
| Surge protection | 1000V |
| Protection class | Class II |
| Functions | |
|---|---|
| Dimmability | No |
| Sensor | No |
| Emergency | No |
| Photometric data | |
|---|---|
| CRI | RA80 |
| SDCM | 5 |
| Flicker percentage | ≤3% @100Hz |
| Photobiological safety group | RG0 |
| Mounting & Application | |
|---|---|
| Mounting method | Surface mounted / Suspended |
| Loop-through | Yes |
| IP rating | IP66 |
| IK rating | IK08 |
| Glow wire test | 850°C |
| Lifetime L70/B50 | 100000h |
| Lifetime L80/B10 | 70000h |
| Lifetime L90/B10 | 50000h |
| Switching cycles | 100000 |
| Operating temperature | -30 - 50°C |
| Application temperature | 25°C |
| Warranty | 5 years |
| Materials & Colour | |
|---|---|
| Housing material | PC |
| Cover material | PC |
| Finishing colour | Grey |
| Logistical data | |
|---|---|
| EAN | 4892657124873 |

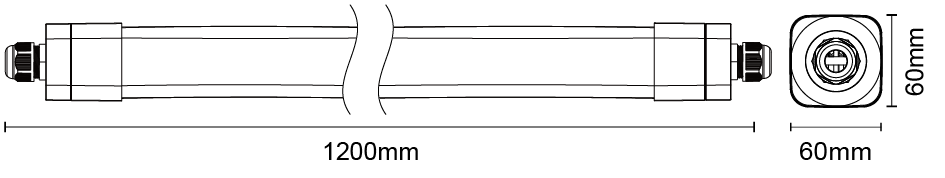

| Product length | 1200mm |
| Product width | 60mm |
| Product height | 60mm |
| Product net weight | 0.930kg |
